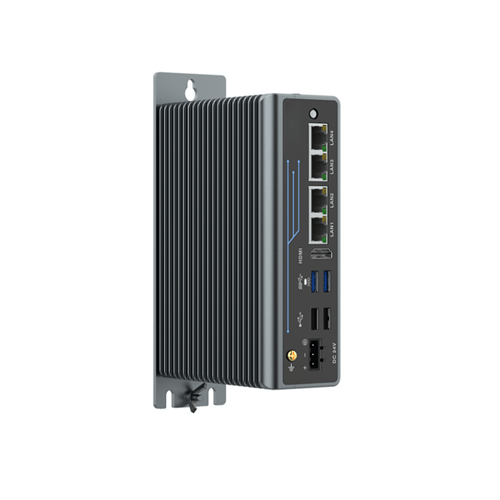

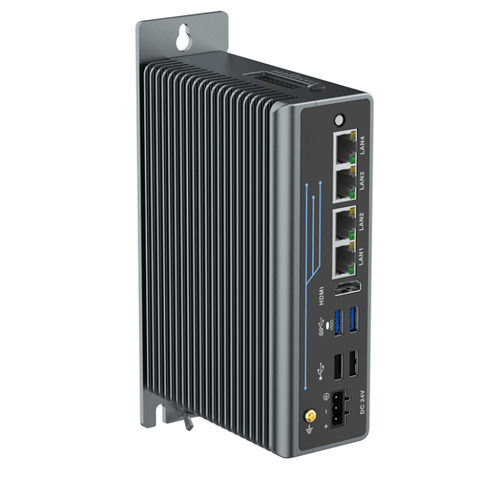

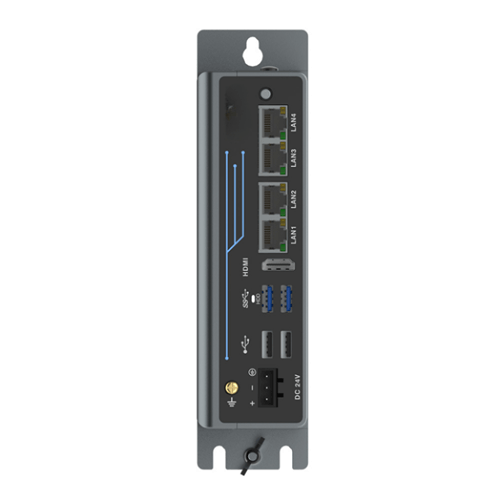

DIN RAIL Box PC
High-Performance DIN Rail Mount Industrial Mini PC for Edge Computing & Automation
Vstrong’s Edge Computing Series introduces a powerful and compact DIN rail mount industrial mini PC built for demanding industrial automation and real-time control environments. Engineered for reliability, scalability, and performance, this fanless industrial PC features a modular design that adapts seamlessly to diverse industrial IoT (IIoT) applications.
Compact & Energy-Efficient with Intel® Alder Lake-N Processors
Powered by Intel® 12th Gen Alder Lake-N series processors, this industrial embedded computer delivers outstanding energy efficiency and computing power. Its compact form factor is perfect for space-constrained control cabinets, offering the performance needed for real-time industrial automation, machine control, and edge data processing.
Flexible I/O and Expansion for Industrial Connectivity
Equipped with a Mini PCIe slot, the system supports a wide range of wireless modules including industrial Wi-Fi, 3G/4G LTE, and CAN bus for field device communication. With four Intel® i210 Gigabit LAN ports, it ensures high-speed and reliable Ethernet communication, making it ideal for industrial networking and remote monitoring.
Real-Time Linux Performance for Precision Automation
This DIN rail PC runs on a Linux-based OS optimized for real-time processing, achieving up to 250μs scan cycles and as low as 20μs jitter. It’s a perfect fit for high-precision motion control, robotic automation, SCADA systems, and time-sensitive industrial tasks.
Ideal for Industrial IoT, Edge Devices & Automation Control
Whether you're deploying industrial edge computing nodes, remote data acquisition systems, or intelligent machine controllers, Vstrong’s rugged DIN rail PC delivers the stability, speed, and scalability required for modern IIoT and Industry 4.0 environments.
| Processor | Alder Lake-N | N97 | N100 | Core i3-N305 |
|---|---|---|---|---|
| Core/threads | 4C | 4C/4T | 8C/8T | |
| Max Turbo frequency | 3.6 GHz | 3.4 GHz | 3.8 GHz | |
| Cache | 6 MB | 6 MB | 6 MB | |
| Processor base power | 12W | 6W | 15W | |
| BIOS | AMI UEFI BIOS | |||
| RAM | Memory | 1x SO-DIMM DDR4 up to 16GB | ||
| Display | GPU | Integrated Intel Graphics | ||
| Display Via | 1x HDMI, Max. resolution: 4096*2160@30Hz | |||
| Ethernet | Speed | 10/100/1000 Mbps | ||
| controller | 4x Intel i210 | |||
| Interface | 4 x RJ45 | |||
| Storage | M.2 | 1x M.2 Key M 2280 Slot for NVMe(PCIe 2X Signal)/SATA SSD | ||
| SATA | 1x SATA interface, with power supply | |||
| Expansion | Mini PCIe | 1x Mini PCIe, PCIe+USB2.0, for Wi-Fi and 4G modules | ||
| IO | COM | 2x COM, Default RS232, RS485 congurable via jumper | ||
| USB2.0 | x2 | |||
| USB3.0 | x2 | |||
| GPIO | 8 bits (4-IN 4*Out) | |||
| Mechanical | Size | 160mm × 115.5mm × 50mm) | ||
| Weight | TBD | |||
| Power | Power | 12V-24V DC-IN (3-pin 5.08 power connector) | ||
| Environment | Working Temp. | – 20°C to 60°C | ||
| Storage temp. | – 40°C to 80°C | |||
| Cooling | Passive (Active for i3-N305) | |||
| ESD (EN61000-4-2) | ±8kV Air Discharge for all surfaces ±6kV Contact Discharge for exposed conductive surfaces | |||
| OS | Windows 10/11 64bit, Linux 64bit | |||
Key Features:
Compact fanless design with DIN rail mounting
Intel® 12th Gen Alder Lake-N processors
Optimized for real-time Linux applications
4× Gigabit LAN (Intel® i210) for robust networking
Expansion via Mini PCIe (Wi-Fi, 4G, CAN Bus, etc.)
Supports high-precision control with 250μs scan cycle
