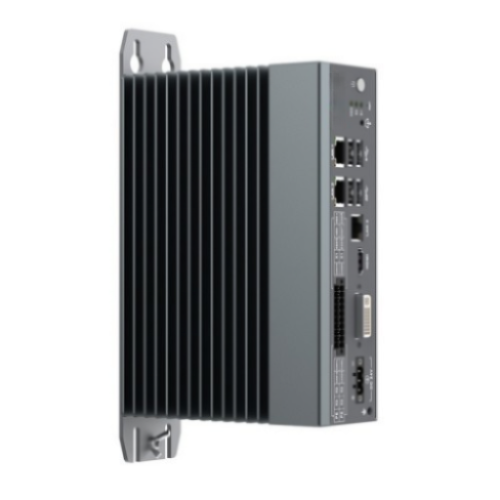

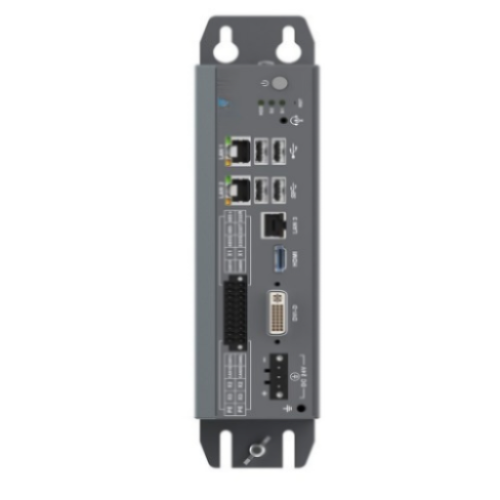

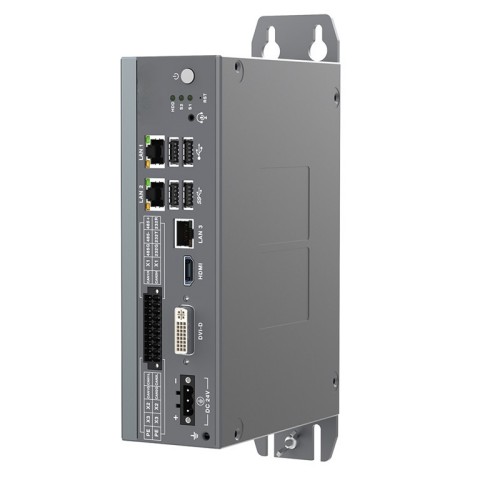

DIN RAIL Box PC support COM electronic insulation IO isolated
Modular design for exible interface expansion(CAN, RS232, RS485, LAN, 5G, WiFi)
Powered by the 8th Gen(Whisky Lake) /11th Gen(Tig er Lake) Intel Celeron, Core i3/i5/i7 CPU
DIN-rail mounting configurations for more flexibility
High-speed isolated digital I/O(4x DI, 4x DO). 128KB built-in ferroelectric memory
Built-in Mini PCIe and internal USB for secure software integration
System imaging functionality for easier deployment and maintenance
TSN(Time-Sensitive Networking) support for time-critical applications
Ideal for Industrial IoT, Edge Devices & Automation Control
Whether you're deploying industrial edge computing nodes, remote data acquisition systems, or intelligent machine controllers, Vstrong’s rugged DIN rail PC delivers the stability, speed, and scalability required for modern IIoT and Industry 4.0 environments.
| Processor | Whiskey Lake | 8th Gen Intel Celeron, Core i3/i5/i7 | |
|---|---|---|---|
| Tiger Lake | 11th Gen Intel Celeron, Core i3/i5/i7 | ||
| BIOS | AMI Real-time BIOS | ||
| RAM | Memory | 2x SO-DIMM DDR4, up to 64GB | |
| Display | GPU | Integrated Intel Graphics | |
| Display Via | DVI-D, HDMI | ||
| Ethernet | Speed | 10/100/1000 Mbps | |
| controller | 1x Intel i226, 2x Intel i210 | ||
| Interface | 3 x RJ45 | ||
| Storage | M.2 | 1x M.2 Key M slot, supports 2242/2280 SSD (SATA protocol) | |
| mSATA | 1x mSATA Interface, built-in 1M ferroelectric memory (optional) | ||
| LED Indicators | 1x Power LED, 1x HDD LED, 2x Programmable LEDs | ||
| Expansion | Mini PCIe | 1x Mini PCIe | |
| M.2 | 1x M.2_E slot for Wi-Fi | ||
| M.2 | 1x M.2_W slot for 4G/5G modules | ||
| IO | USB 3.2 | 2x USB 3.2 Gen1 | |
| USB2.0 | x2 | ||
| Internal | USB | 1x USB 2.0 | |
| COM | 1xRS232+1xRS485 | ||
| Mechanical | Size | 160mm × 115.5mm × 50mm) | |
| Weight | TBD | ||
| Power | Power | 12V-24V DC-IN (3-pin 5.08 power connector) | |
| Environment | Working Temp. | – 20°C to 60°C | |
| Storage temp. | – 40°C to 80°C | ||
| Cooling | Passive/Active | ||
| ESD (EN61000-4-2) | ±8kV Air Discharge for all surfaces ±6kV Contact Discharge for exposed conductive surfaces | ||
| OS | Windows 10/11 64bit, Linux 64bit | ||
