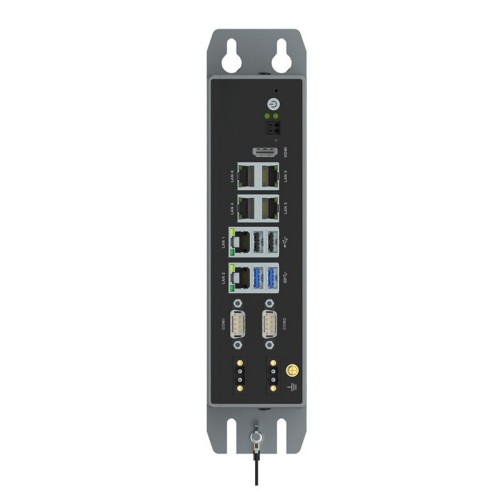

Industrial PC 6 LAN DIN RAIL Mounting

Intel® 6/7/8/9th Gen–Core™ i3/i5/i7, Pentium, and Celeron CPUs Compact & Space-Saving – DIN-rail mountable design High-Speed Networking – 6x Gigabit Ethernet Flexible Expansion – 2 × Mini PCIe slot for WIFI/4G, CAN and more Versatile Serial Communication – 2 × COM ports (RS-232/RS-485)

Description Package Information Inquiry

Modular High-Performance Edge Computers for DIN Rail Systems
The VstrongTech IF series edge computers are engineered with a highly modular design. Consequently, they offer exceptional flexibility for high-performance edge computing. Furthermore, they seamlessly integrate into DIN-rail industrial control systems. This key feature empowers users to tailor configurations precisely to their unique application requirements.
Versatile Processing Power
Powered by 8th Gen (Whiskey Lake Platform) and 11th Gen (Tiger Lake Platform) Intel Celeron and Core i3/i5/i7 processors, the IF series delivers versatile computing power. As a result, users experience increased productivity across various industrial tasks.
Enhanced Connectivity and Security
The IF series provides robust connectivity through a built-in Mini PCIe interface. This allows for the support of multiple peripherals. Additionally, an internal USB Dongle interface ensures enhanced software security, protecting critical operations.
Real-Time Performance for Reliable Control
Moreover, the IF series incorporates 128KB built-in ferroelectric memory. It also features high-speed isolated digital I/O (4x DI, 4x DO). Furthermore, support for TSN (Time-Sensitive Networking) technology ensures the high real-time performance necessary for dependable industrial control.

Processor	CPU Intel® 6/7/8/9th Gen	i3-6100T	i5-7500T	i7-8700T
	Core/threads	2C/4T	4C/4T	6C/12T
	Max Turbo frequency	3.2 GHz	3.3 GHz	4.0 GHz
	Cache	3 MB	6 MB	12 MB
	Processor base power	35W	35W	35W
BIOS	AMI UEFI BIOS
RAM	Memory	2x SO-DIMM DDR4 up to 64GB
Display	GPU	Integrated Intel Graphics
Display	Display Via	1x HDMI, Max. resolution: 4096*2160@30Hz
Ethernet	Speed	10/100/1000 Mbps
	controller	5x Intel® i210+1x Intel® i219
	Interface	6 x RJ45
Storage	M.2	1x M.2 Key M 2280 Slot for NVMe(PCIe 2X Signal)/SATA SSD
Storage	SATA	1x SATA interface, with power supply
Expansion	Mini PCIe	2x Mini PCIe, PCIe+USB2.0, for Wi-Fi and 4G modules
IO	COM	2x COM, Default RS232, RS485 congurable via jumper.
	USB2.0	x2
	USB3.0	x2
Mechanical	Size	200mm × 162mm × 60mm
Mechanical	Weight	TBD
Power	Power	12V-24V DC-IN (3-pin 5.08 power connector)
Environment	Working Temp.	– 20°C to 60°C
	Storage temp.	– 40°C to 80°C
	Cooling	Active. External Removeable Fan
ESD (EN61000-4-2)		±8kV Air Discharge for all surfaces ±6kV Contact Discharge for exposed conductive surfaces
OS		Windows 10/11 64bit, Linux 64bit
