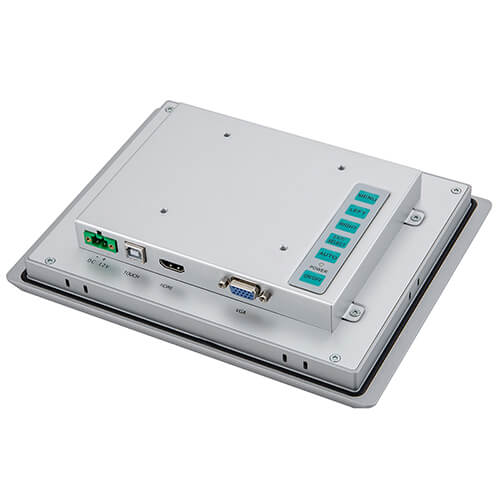

Industrial Monitor 8 inch capacitive resistive touch
Size: 8 inch Resolution 800*600
Capacitive & Resistive touch optional
HDMI+VGA
9-28V DC
IP65 compliant front panel
Rugged Fanless Design
Description
Package Information
Inquiry
Size: 8 inch Resolution 800*600
Capacitive & Resistive touch optional
HDMI+VGA
9-28V DC
IP65 compliant front panel
Rugged Fanless Design
| Display | |
|---|---|
| Size | 8 inch |
| Touch Type | 5-wire resistive touch/projected capacitive multi touch (optional) |
| Transmitiance | 85% (capacitive) / 80% (resistive) |
| Resolution | 800*600 (Optional 1024*768) |
| Max Color | 16.7M |
| Luminance | 250 cd/m2 |
| View Angles | -85 ~ 85 ° (H), -85 ~ 85 ° (V) |
| LED Lifetime | 30,000 hrs |
| OSD Keys | |
| OSD Keys | OSD keys on back, adjust brightness, contrast etc. |
| I/O Ports | |
| USB | USB Touch |
| Display | 1x HDMI, 1x VGA |
| Power | |
| DC Input | 12V DC by Default, 9-28V DC optional |
| Power Connector | 3 pin Pheonix Connector |
| Support OS | |
| Support OS | Windows 7/8/10, Win 11 / Linux |
| Mechanical | |
| Dimensions (W x D x H) | 230.3 x 177.3 x 41.4 mm |
| Weight (N.W.) | 1.42 KG |
| Mounting | Panel mount, wall mount bracket VESA 100 |
| Material | Aluminum alloy panel, all-metal chassis |
| Environment | |
| Operating Temperature | -10 to 50℃ |
| Storage Temperature | -20 to 60°C |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| IP Rating | IP65 compliant (for front panel) |
| Certification | |
| EMC | CE |
