Industrial Monitor 8 inch capacitive resistive touch

Size: 10 inch Resolution 1280*800 Capacitive & Resistive touch optional HDMI+VGA 9-28V DC IP65 compliant front panel Rugged Fanless Design
Description Package Information Inquiry


  • Size: 10 inch Resolution 1280*800

  • Capacitive & Resistive touch optional

  • HDMI+VGA

  • 9-28V DC

  • IP65 compliant front panel

  • Rugged Fanless Design



Display
Size10 inch
Touch Type5-wire resistive touch/projected capacitive multi touch (optional)
Transmitiance85% (capacitive) / 80% (resistive)
Resolution1024*768
Max Color16.7M
Luminance350 cd/m2
View Angles-85 ~ 85 ° (H), -85 ~ 85 ° (V)
LED Lifetime30,000 hrs

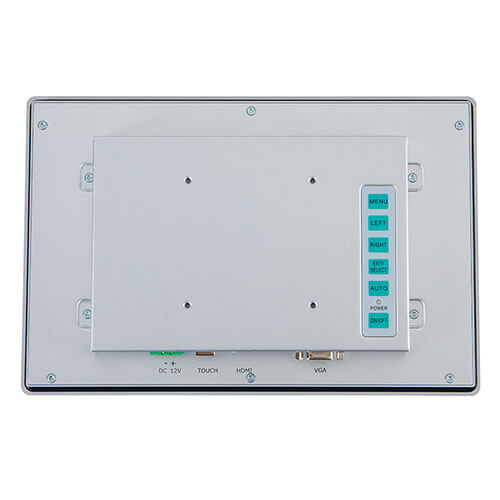

OSD Keys
OSD KeysOSD keys on back, adjust brightness, contrast etc.

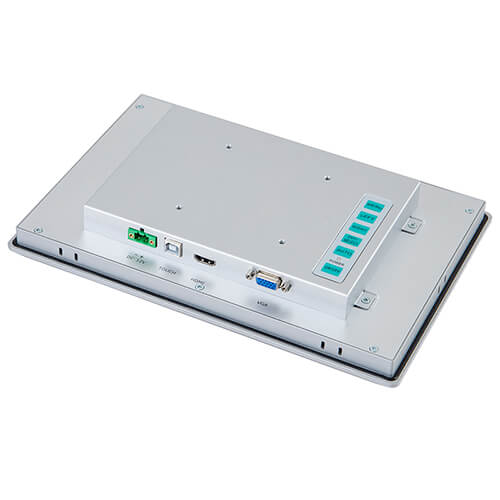

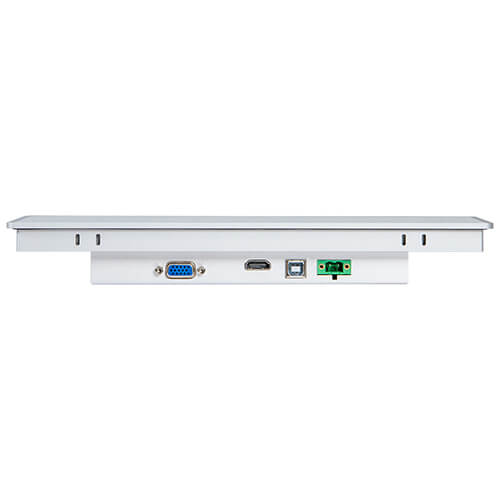

I/O Ports
USBUSB Touch
Display1x HDMI, 1x VGA
Power
DC Input12V DC by Default, 9-28V DC optional
Power Connector3 pin Pheonix Connector
Support OS
Support OSWindows 7/8/10, Win 11 / Linux
Mechanical
Dimensions (W x D x H)283.2 x 186.9 x 41.4 mm
Weight (N.W.)1.55 KG
MountingPanel mount, wall mount bracket VESA 100
MaterialAluminum alloy panel, all-metal chassis
Environment
Operating Temperature-10 to 50℃
Storage Temperature-20 to 60°C
Relative Humidity10% to 95% @ 40°C (104°F), non-condensing
IP RatingIP65 compliant (for front panel)
Certification
EMCCE
