Industrial touch screen panel PC 8-21.5 inches optional CPU N100 J6412
Explore our selection of industrial touchscreen panel PCs—compact all-in-one solutions built for seamless integration in harsh industrial environments. Each unit combines a high-performance embedded computer with a durable touchscreen display, designed to withstand vibration, dust, moisture, and extreme temperatures.
With flexible mounting options, wide voltage input, and a range of CPU choices—from Intel® Celeron® to Core™ i7—our panel PCs are ideal for factory automation, smart kiosks, logistics, and more. Designed for 24/7 reliability, they ensure stable, long-term operation while saving valuable space.
Find the right solution tailored to your application with Thinkbest PC’s rugged, efficient, and customizable panel PC lineup.
| Display | |
| Size | 15.6 inch |
| Touch Type | 5-wire resistive touch/projected capacitive multi touch (optional) |
| Transmitiance | 85% (capacitive) / 78% (resistive) |
| Resolution | 1920 x 1080 |
| Max Color | 262K |
| Luminance | 250 cd/m2 |
| View Angles | -85 ~ 85 ° (H), -85 ~ 85 ° (V) |
| LED Lifetime | 30,000 hrs |
| System | |
| CPU | Intel® Celeron J6412 / N100 Intel® Core™ 8/10/11th/12th Gen Core i5 i7 |
| Memory | N100/J6412 SO-DIMMx1 up to 16GB; Core i5/i7 SO-DIMM x2 up to 32GB |
| Storage | 1 x M.2 2242/2260/2280 SATA |
| 1x 2.5″ SATA HDD/SSD (optional) | |
| 1 x M.2 2280 NVME | |

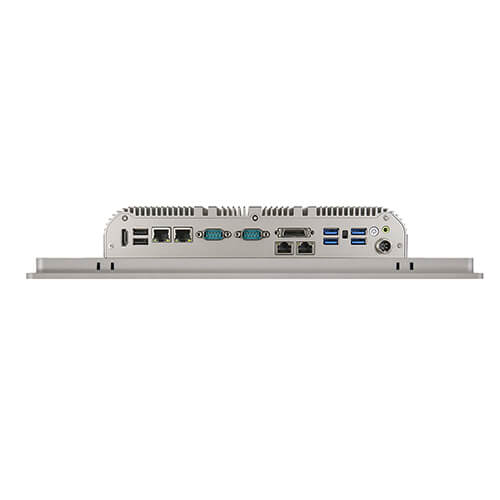

| I/O Ports | |
| USB | 2xUSB 3.0+ 4x USB2.0 |
| Serial | 2x COM (COM1& 2 optional RS-232/422/485) |
| Ethernet | 2x GbE LAN (Optional 4*Ethernet LAN ) |
| Display | 1x HDMI |
| Audio | 1x Audio line out |
| Speaker | Optional 2 x 8Ω 1W speaker |
| AT/ATX switch | 1x AT/ATX slide switch |
| Expansion IO | Expansion IO for 4xCOM ports, 10 bits GPIO, 1 Remote Switch |
| Expansion Slot | |
| M.2 | 1x M.2 slot for 4G/5G LTE module, SIM card slot on board. |
| M.2 | 1x M.2 for WIFI & BT |
| Power | |
| Button | Yes |
| DC Input | 9-36V DC |
| Power Connector | 4 pin Aviation Connector |
| Operating System | |
| Windows | Windows 10, Windows 11/ Linux |
| Mechanical | |
| Dimensions (W x D x H) | 402.76 x 252.19 x 65.3 mm |
| Weight (N.W.) | 4.6KG |
| Mounting | Panel mount, wall mount bracket VESA 75/100 |
| Material | Aluminum alloy panel, all-metal chassis |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| IP Rating | IP65 compliant (for front panel) |
| Certification | |
| EMC | CE -EMC, LVD, ROHS |
Key Features of Our Industrial Touch Screen PCs:
1. Unwavering Rugged Durability for Harsh Environments:
Confront the toughest conditions with our industrial panel PCs, engineered for exceptional resilience. Featuring robust, heavy-duty housings and industrial-grade components, our PCs are built to withstand dust, water ingress (up to IP67 ratings available), extreme operating temperatures (from -10°C to +60°C ), and high levels of vibration and shock. Whether deployed on a busy factory floor, in challenging outdoor locations, or within transportation systems, our touch screen panel PCs deliver consistent, reliable performance when it matters most.
2. Seamless Connectivity for Integrated Operations:
Achieve effortless integration with your existing industrial infrastructure. Our industrial touch panel PCs boast a comprehensive array of connectivity options, including multiple high-speed USB ports, reliable Ethernet connections, secure Wi-Fi capabilities, and versatile serial interfaces (RS-232, RS-485,4*Ethernet RJ45 LAN ports). This ensures smooth and efficient data exchange, real-time communication with other devices and systems, and streamlined control across your critical operations.
3. Tailored Solutions: Customizable and Scalable to Your Needs:
We recognize that every industrial application presents unique challenges. That's why our panel PCs offer extensive customization options. Choose the processing power you require (from energy-efficient to high-performance), optimize memory and storage capacities, and integrate specialized features such as PCI slot expansions, RFID readers for identification, 2D barcode scanners for data capture, and more. Our scalable panel PC solutions are designed to adapt and evolve alongside your business growth, ensuring a future-proof investment.
