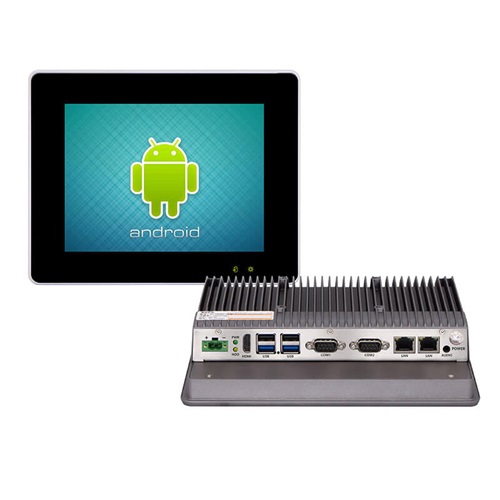

Rugged Android Industrial Panel PCs for Automation & HMI 8 inch
Looking for a reliable and powerful Human-Machine Interface (HMI) for your industrial environment? Our series of industrial-grade Panel PCs combines the user-friendliness of the Android operating system with the robustness and durability required for demanding applications. Available in a range of sizes from compact 8 inches to expansive 23.8 inches, and powered by optional high-performance CPUs (RK3288/3399/3568/3588), these fanless Panel PCs are designed to enhance efficiency and streamline operations across various industries.
| Display | |
| Size | 8 inch |
| Touch Type | 5-wire resistive touch/projected capacitive multi touch (optional) |
| Transmitiance | 95% (capacitive) / 85% (resistive) |
| Resolution | 800x600 |
| Luminance | 350 cd/m2 |
| View Angles | -85 ~ 85 ° (H), -85 ~ 85 ° (V) |
| LED Lifetime | 30,000 hrs |
| System | |
| CPU | Rockchip RK3288/3399/ RK3568/3588 |
| Memory | 2GB/ 4GB/ 8GB optional |
| Storage | Optional 16GB/ 32GB/ 64GB/128GB |
| I/O Ports | |
| USB | 4xUSB |
| Serial | 2x COM |
| Ethernet | 1x GbE LAN (optional 2* LAN) |
| Display | 1x HDMI |
| Audio | 1x Audio line out |
| Expansion Slot | |
| Mini PCIe | Optional for 4G/5G LTE module, or WIFI & BT |
| Power | |
| DC Input | 12 V DC (optional 9-36V DC) |
| Power Connector | Aviation connector |
| Operating System | |
| Windows | Android 8/9/11/ Linux |
| Mechanical | |
| Dimensions (W x D x H) | 224mm*203mm*54mm |
| Weight (N.W.) | 1.5 KG |
| Mounting | Panel mount, wall mount bracket VESA 75/100 |
| Material | Aluminum alloy panel, all-metal chassis |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| IP Rating | IP65 compliant (for front panel) |
| Certification | |
| EMC | CE -EMC, LVD, ROHS |
Key Features and Benefits:
Wide Range of Display Sizes: Choose the perfect size for your application, from a space-saving 8 inch industrial Android panel PC to a large and easily viewable 23.8 inch industrial Android panel PC.
Powerful and Efficient Processors: Select the optimal processing power for your needs with options including RK3288 Android industrial panel PC, RK3399 industrial panel PC for high performance, RK3568 powered industrial Android panel PC, and the cutting-edge RK3588 Android industrial panel PC.
Android and Linux Flexibility: Our Panel PCs support both Android 11 industrial panel PC for intuitive operation and a vast ecosystem of applications, and Linux industrial panel PC for greater customization and control.
Multiple Input/Output Options: Easily integrate with your existing industrial equipment with a variety of I/O ports to meet diverse connectivity requirements.
Wide Voltage Power Input: Ensure stable and reliable operation with a 9-36V DC power input industrial panel PC, suitable for various power environments.
Rugged and Reliable Design: Built to withstand harsh industrial conditions, our fanless industrial panel PCs offer enhanced durability, resistance to dust and vibration, and extended operational lifespan, minimizing downtime and maintenance costs.
Optional Features for Enhanced Functionality: Customize your Panel PC with optional features to match your specific needs.
