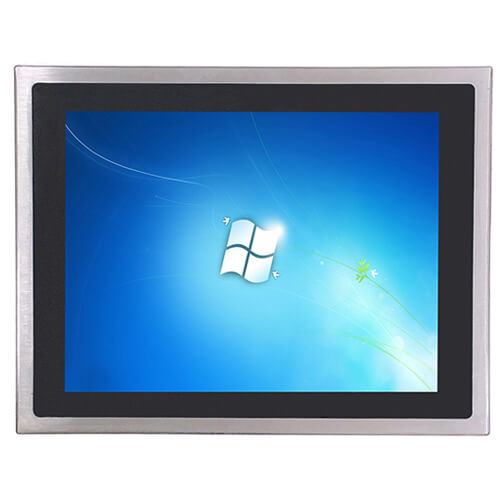

IP67 Stainless Steel Industrial Panel PC 12.1 inch
IP67 Stainless Steel Industrial Panel PC – Compact, Waterproof, High-Performance
Looking for a rugged, waterproof industrial computer built to perform in harsh environments? Our IP67-rated stainless steel industrial panel PC, made from corrosion-resistant 304 stainless steel, is engineered for demanding applications such as food processing, pharmaceuticals, and outdoor automation.
Designed for VESA mounting, this fanless industrial PC features an ultra-compact design and is available with a projected capacitive touchscreen or a true flat resistive touchscreen, ensuring reliable operation with or without gloves.
Powered by the latest-generation low-power CPU, this panel PC delivers high computing performance with energy efficiency—making it ideal for 24/7 industrial operation.
| Display | |
| Size | 12.1 inch |
| Touch Type | 5-wire resistive touch/projected capacitive multi touch (optional) |
| Transmitiance | 85% (capacitive) / 78% (resistive) |
| Resolution | 1024*768 |
| Luminance | 350 cd/m2 |
| View Angles | -85 ~ 85 ° (H), -85 ~ 85 ° (V) |
| LED Lifetime | 30,000 hrs |
| System | |
| CPU | Intel® Celeron J6412 / N100 Intel® Core™ 8/10/11th/12th Gen Core i5 i7 |
| Memory | N100/J6412 SO-DIMMx1 up to 16GB; Core i5/i7 SO-DIMM x2 up to 32GB |
| Storage | 1 x M.2 2242/2260/2280 SATA |
| 1x 2.5″ SATA HDD/SSD (optional) | |
| I/O Ports | |
| USB | 2-4 USB |
| Serial | 1-2x COM (optional RS-232/422/485) |
| Ethernet | 1-2 x GbE LAN (Optional) |
| Display | 1x HDMI Optional |
| Expansion Slot | |
| M.2 | 1x M.2 slot for 4G/5G LTE module, SIM card slot optional extended to housing. |
| M.2 | 1x M.2 for WIFI & BT |
| Power | |
| Button | Yes |
| DC Input | 9-36V DC |

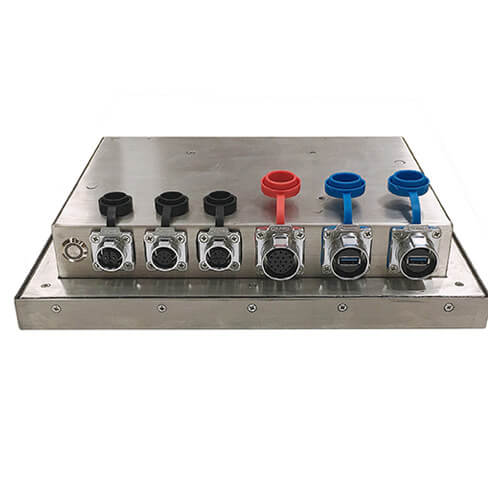

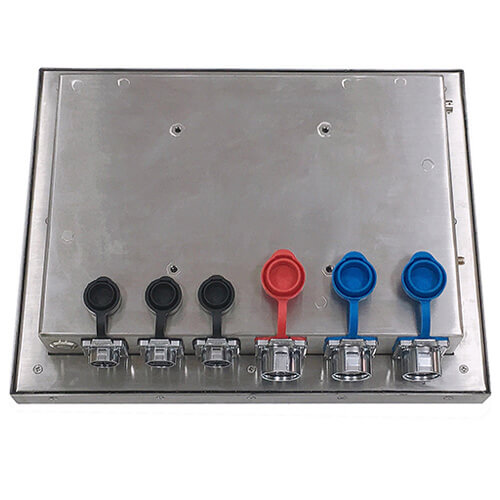

| Power Connector | IP67 waterproof connector with power adapter |
| Operating System | |
| Windows | Windows 10, Windows 11/ Linux |
| Mechanical | |
| Dimensions (W x D x H) | 350 x 285 x 49.5 mm |
| Weight (N.W.) | 4.8KG |
| Mounting | Panel mount, wall mount bracket VESA 75/100 |
| Material | Aluminum alloy, Stainless Steel optional |
| Environment | |
| Operating Temperature | -10 to 50℃ (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative Humidity | 10% to 95% @ 40°C (104°F), non-condensing |
| Vibration | 5-500Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| IP Rating | IP67 Full panel PC |
| Certification | |
| EMC | CE -EMC, LVD, ROHS |
Key Features:
Full IP67 waterproof and dustproof protection
SUS 304/306 stainless steel housing for hygiene-critical environments
VESA mount compatible
Compact design with fanless operation
Optional P-CAP or TRUE FLAT resistive touchscreens
High-performance energy-efficient processor
