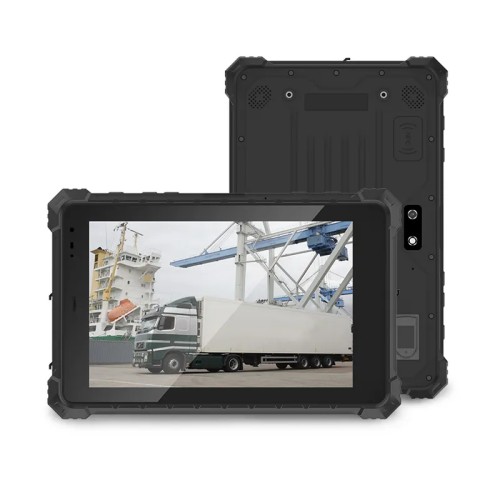

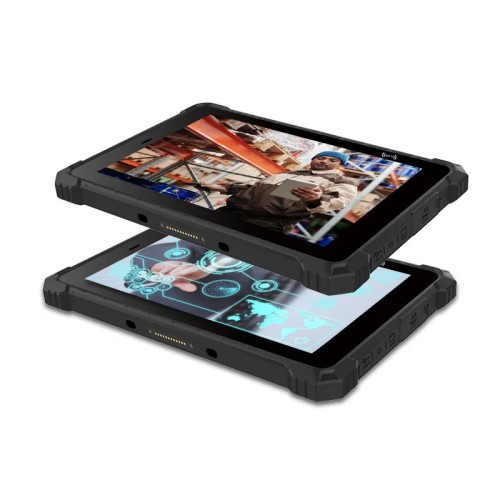

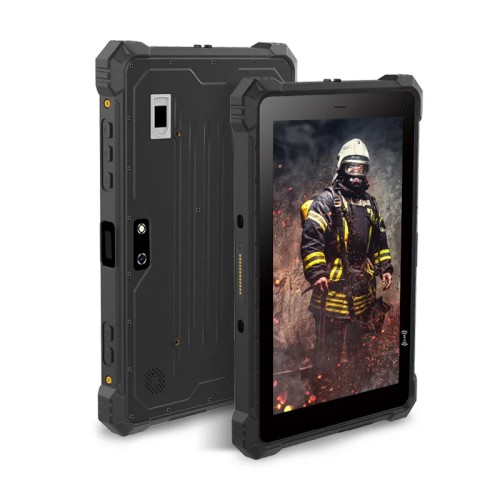

5G Rugged Tablet 10.1 inch Android OS
MTK MT8781 / 8GB+128GB / 12GB+256GB
Android 13 OS
10.1 inch Display, 1200*1920, By default 750 nits support sunlight readable
Big capacity Battery, 10000mAh, 3.8V
Full IP68 dust & water resistance
Equipment with WIFI/BT, GPS, 4G LTE, NFC
Optional 1D/2D barcode scanner
Description
Package Information
Inquiry
Configure FHD Highlight 8+128G/12+256G Customized HD Highlight 8+128G/12+256G Size weight 276.0*180.5*22.5mm/1125g Wall hole pitch / screw 154×71.5mm/ M3*4.5mm color Black, color can be customized screen size 10.1inch screen resolution IPS 1920*1200 (optional 1280*800） screen brightness 700cd/㎡, can be customized1000cd/㎡ TP touch screen 10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) Battery 10000mAh, 3.8v high voltage lithium battery, non-removable, battery life 5-6h (1080P+50% brightness) Camera Front camera: 8MP fixed focus (16 million can be customized in batches)
Rear camera: 16MP auto focusKeys Power button*1
Volume keys*2, Vol+, Vol-
Custom keys*2, P key, F keyHardware configeration Speaker, receiver, microphone *2, speaker 2W/8Ω aluminum film, waterproof speaker;
*1, waterproof handset
*1, MIC,waterproof ratingCPU MTK8781，Octa core，2.2GHZ RAM/ROM 8G+128GB/ 12G+256GB（optional ） Gravity sensor YES Compass YES Gyro YES Light-sensitive YES distance sensing YES OS Android 13 Network connections WIFI WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI Bluetooth Bluetooth 5.2 (BLE) class1 transmit distance：10m 2G/3G/4G GSM: B2/B3/B5/B8
WCDMA: B1/B2/B5/B8
TD-SCDMA:B38/B39/B40/B41
CDMA2000
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28A/
LTE-TDD: B38/B39/B40/B41GPS GPS、Beidou, Galileo、GLONASS NFC I²C interface, 13.56MHZ supports 14443A/14443B/15693 and other protocols, which is consistent with the NFC application of Android phone type
(The card reading area is default on the back of the fuselage and can be customized in the front)Date collection 1D/2D scanner
Optional（N1）0.3M Pixels+Code 39 5mil 65~150mm+Red light
Read code system：
2D：PDF417, QR Code, Micro QR, Data Matrix
1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey（SE4710）1.0M Pixels+Code 39 5mil 50~340mm+Red light
Read code system：
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin InverseID card -Optional Standard second-generation offline Ministry of Public Security certified ID card reader module UHF-Optional （optional ）
distance1：≤3M，Service frequency 840-960MHz
distance2：≤5M，Service frequency 860-960MHz
distance3：≤15M，Service frequency 840-960MHzHF-Optional 13.56MHz adapt 14443A/14443B/15693 protocols distance：1-3cm LF-Optional support 125kHz distance：1-3cm Fingerprint-Optional 1: Ordinary industrial fingerprint
2: Fingerprint certified by the Ministry of Public Security
3: FBI certified fingerprintIntercom hand microphone Optional Customized optional aviation plug or serial port connection IO ports TYPE-C *1，Type-C adapt OTG Type -A *1，Type-A USB2.0 Earphone Jack *1，3.5mmStandard headphone jack TF Card *1，Maximum support 256GB expansion SIM Card *1，Standard Micro SIM card slot DC port *1, 5V/3A (DC plug outer diameter 3.5mm inner diameter 1.35mm) POGO PIN *1 ,12Pin USB+charger RJ45 *1 COM *1 RS232 Product reliability Drop height 1.2m Free fall to wooden floor Working temp. ‘-20℃~60℃ （Optional-30℃~60℃） Storage temp. ’-30℃~70℃ （Optional-40℃~70℃） Humidity Humidity: 95% Non-Condensing IP rate IP68 CE-NB YES MIL-STD-810G YES Adapter 5V/3A，DC interface adapter
