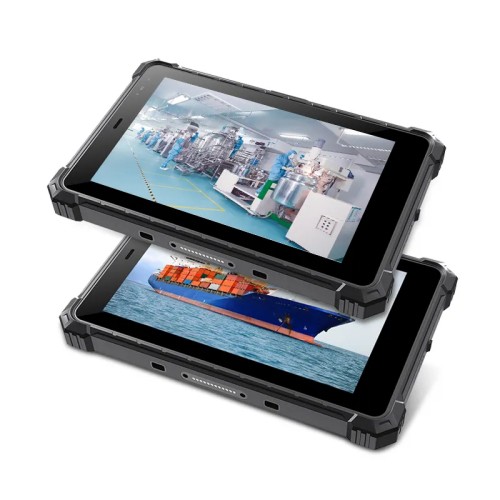

8 inch Rugged Tablet Windows Full IP68 waterproof
Intel JASPER LAKE N5100 Quad Core 4 Thread 1.1GHz-2.8GHz
8+128GB /16+256GBB Optional
8 inch 1280*800/ optional 1920*1200 IPS 700cd/m²
Full IP68 dust & water resistance
Windows 10 / Windows 11 Ubuntu20.04.5、Debian12.5 (Optional ）
Description
Package Information
Inquiry
| Configure | 8+128G HD Highlight |
| 8+128G FHD Highlight | |
| 16+256G FHD Highlight | |
| Size weight | 227.0*142.0*22.5mm/820g |
| Wall hole pitch / screw | 180x64mm/ M3*4.5mm |
| color | Black, color can be customized |
| screen size | 8inch |
| screen resolution | IPS 1280*800 /1920*1200 |
| screen brightness | 700cd/㎡ |
| TP touch screen | 10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Battery | 7.6V 5550mAh high voltage lithium battery, non-removable, battery life ≥7h (1080P+50% brightness) |
| Camera | Front camera: 5.0MP fixed focus Rear camera: 8MP auto focus |
| Buttons | Power button*1 Volume keys*2, Vol+, Vol- Custom keys*2, P key, F key |
| Hardware configeration | |
| Speaker, receiver, microphone | *2, speaker 1.2W/8Ω aluminum film, waterproof speaker; *1, MIC,waterproof rating |
| CPU | Intel JASPER LAKE N5100 Quad Core 4 Thread 1.1GHz-2.8GHz |
| RAM/ROM | 8G+128GB Optional with 16G+256GB |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| OS | Windows 10， Windows 11、Ubuntu20.04.5、Debian12.5 (Optional ） |
| Network | |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI |
| Bluetooth | Bluetooth 4.0 transmit distance：10m |
| 3G/4G Optional | LTE-FDD：B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 LTE-TDD：B38/39/40/41 WCDMA：B1/2/4/5/6/8/19 |
| 5G Optional | -EA:Region:EMEA,Australia,Japan,Korea 5G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8 -NA:Region: North America 5G NR : N2/N5/N7/N12/N13/N14/N25/N38/N41/N48/N66/N71/N77/N78 LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD:B38/B41/B42/B43/B48 WCDMA:B2/B4/B5 |
| GPS | GPS、GLONASS （U-BloxM7N） |
| Data collection | |
| 1D/2D scanner Optional | （N1）：0.3M Pixels+Code 39 5mil 65~150mm+Red light Read code system： 2D：PDF417, QR Code, Micro QR, Data Matrix 1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey （N670）1.0M Pixels+Code 39 5mil 45~200mm+Cross laser Read code system：： 2D：QR Code, Data Matrix, PDF417，Han letter code，Dotcode 1D：UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar,MSI/MSI PLESSEY, GS1 DataBar OCR：Support OCR-A，OCR-B |
| ID card Optional | Standard second-generation offline Ministry of Public Security certified ID card reader module |
| UHF Optional | distance1：≤3M，Service frequency 840-960MHz distance2：≤5M，Service frequency 860-960MHz |
| NFC High frequency Optional | 13.56MHZ adapt 14443A/14443B/15693 protocals |
| Fingerprint Optional | 1: Ordinary industrial fingerprint 2: Fingerprint certified by the Ministry of Public Security 3: FBI certified fingerprint |
| IO ports | |
| TYPE-C | *1，Type-C |
| Type -A | *1，Type-A USB3.0 |
| Earphone Jack | *1，3.5mmStandard headphone jack |
| TF Card | *1，Maximum support 256GB expansion |
| SIM Card | *1，Standard Micro SIM card slot |
| HDMI | *1，Micro HDMI |
| DC port | *1，12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1，12Pin USB+charger |
| RJ45 | *1 |
| Product Reliability | |
| Drop height | 1.2m Free fall to wooden floor |
| Working temperature | ‘-20℃~60℃ （custom-30℃~60℃） |
| Storage temperature | ’-30℃~70℃ （custom-40℃~70℃） |
| Humidity | Humidity: 95% Non-Condensing |
| IP Rate | IP68 |
| CE-NB | YES |
| MIL-STD-810G | YES |
| Adapter | 12V-4A，DC interface adapter |
